Ceramic Feedthroughs

Single and multiple feedthroughs in standard dimensions and customised

Kyocera offers single terminal and multiterminal feedthroughs made of Aluminium oxide F99,7 as standard product ranges and customised components. Minimum outgassing and leakage rates, combined with excellent electrical insulation and thermal resistance levels, ensure the highest degree of reliability. The feedthroughs can be provided with corrugations to increase the creepage distance. This leads to an increased voltage level in the case of atmospheric applications. Glazing of the components facilitates both handling and cleaning procedures. The feedthroughs are routinely tested for vacuum tightness: He leakage rate: < 10^-9 mbar l/s.

You are interested in our products or have a specific project enquiry?

Contact us today!

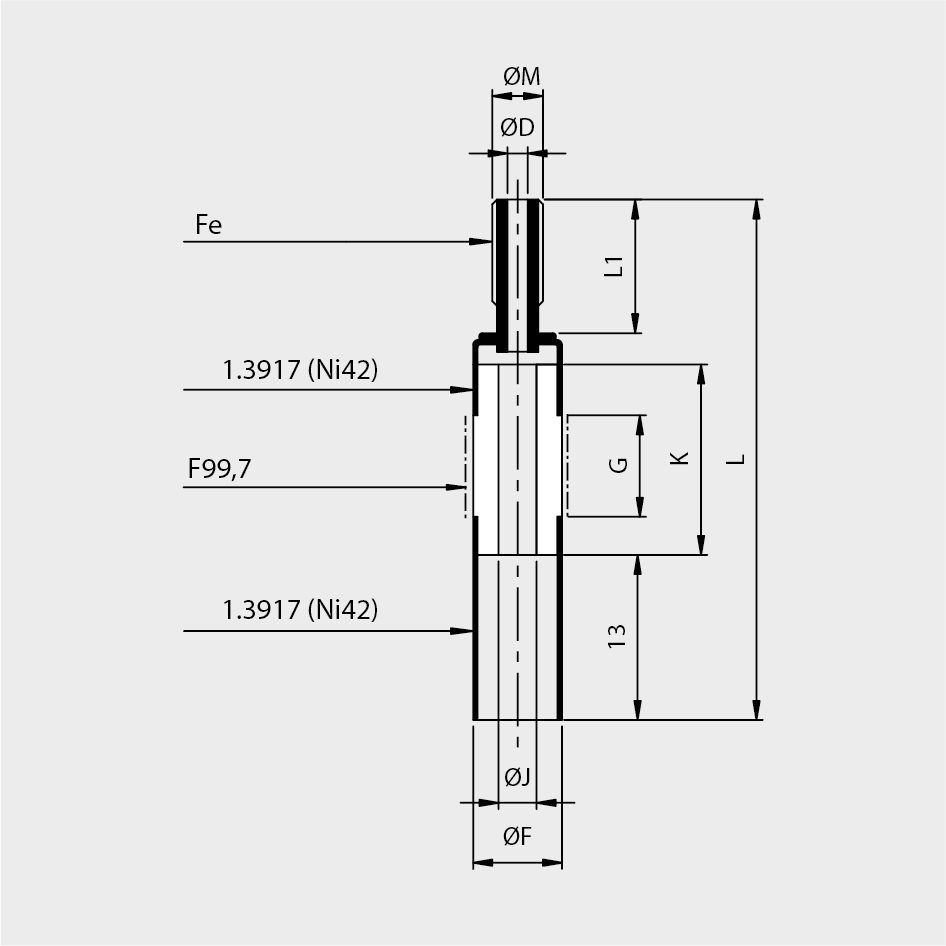

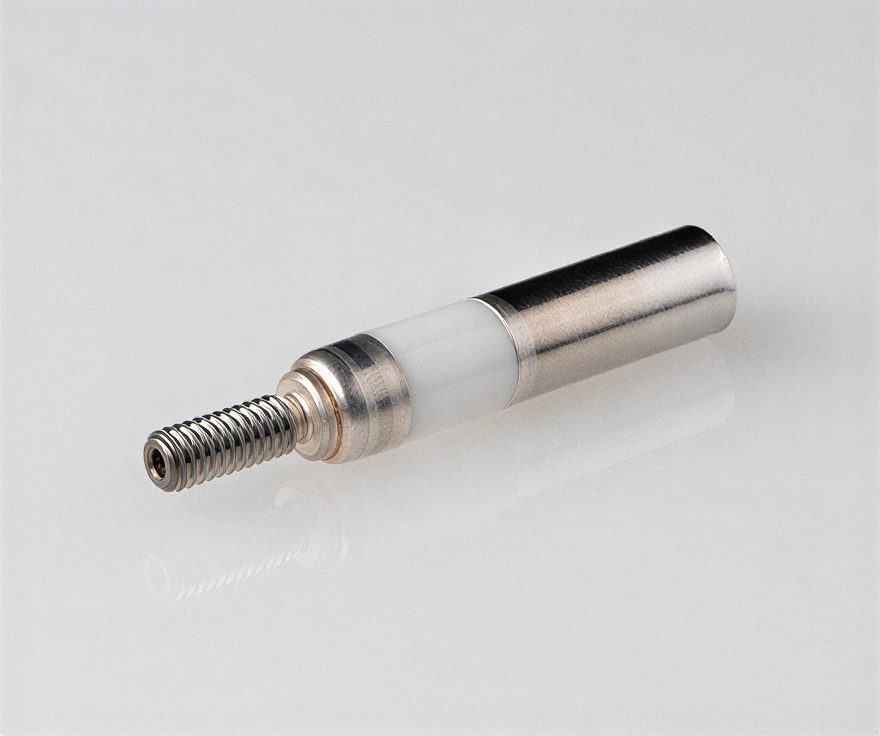

Single feedthrough type A

A conductor with a threaded end (M4, M6 or M8) for direct cable connection. Rated for 4 to 6 kV, with a metal sleeve for welding.

Request an offer

Article number	ØD	Voltage (DC)	ØM	ØF	ØJ	G	K	L	L1
551-1001	1.6 mm	4 kV	M4	7 mm	3 mm	8 mm	15 mm	41 mm	10 mm
551-1002	2.5 mm	6 kV	M6	9 mm	4 mm	13 mm	20 mm	47 mm	10 mm
551-1003	2.5 mm	6 kV	M6	10,8 mm	5 mm	13 mm	20 mm	47 mm	10 mm
551-1004	3.8 mm	6 kV	M8	13,5 mm	6,5 mm	13 mm	20 mm	54 mm	17 mm

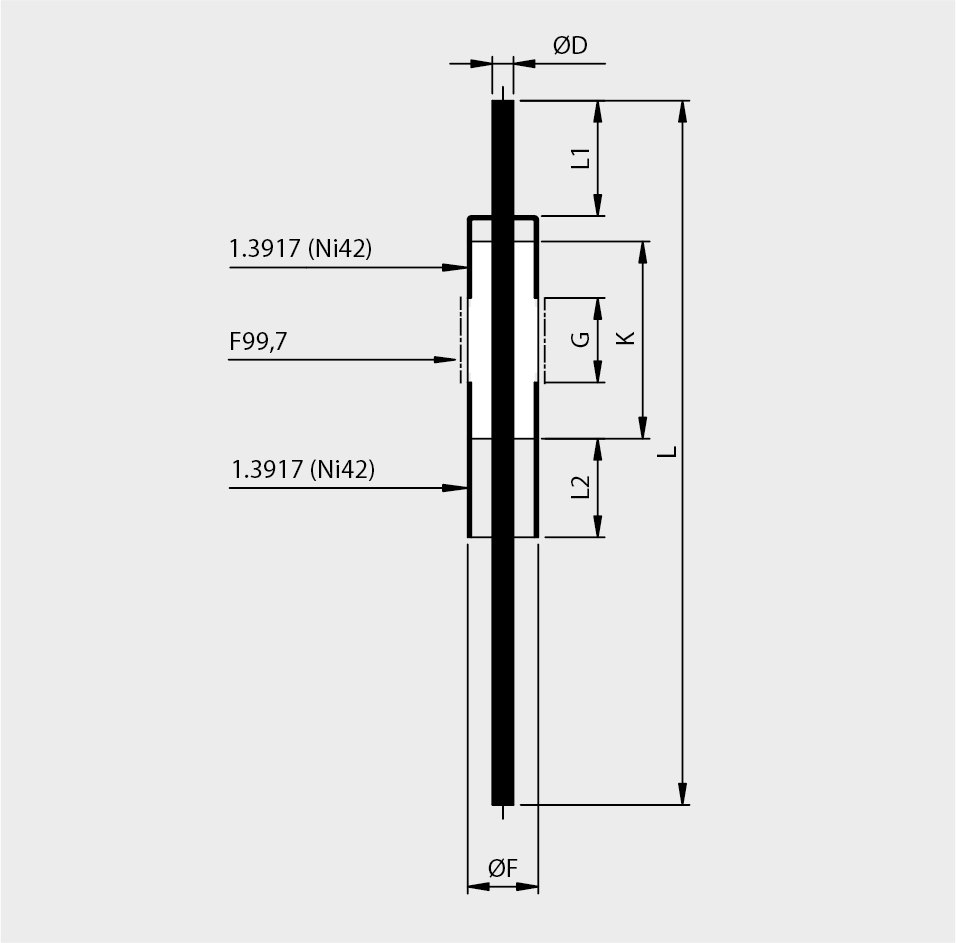

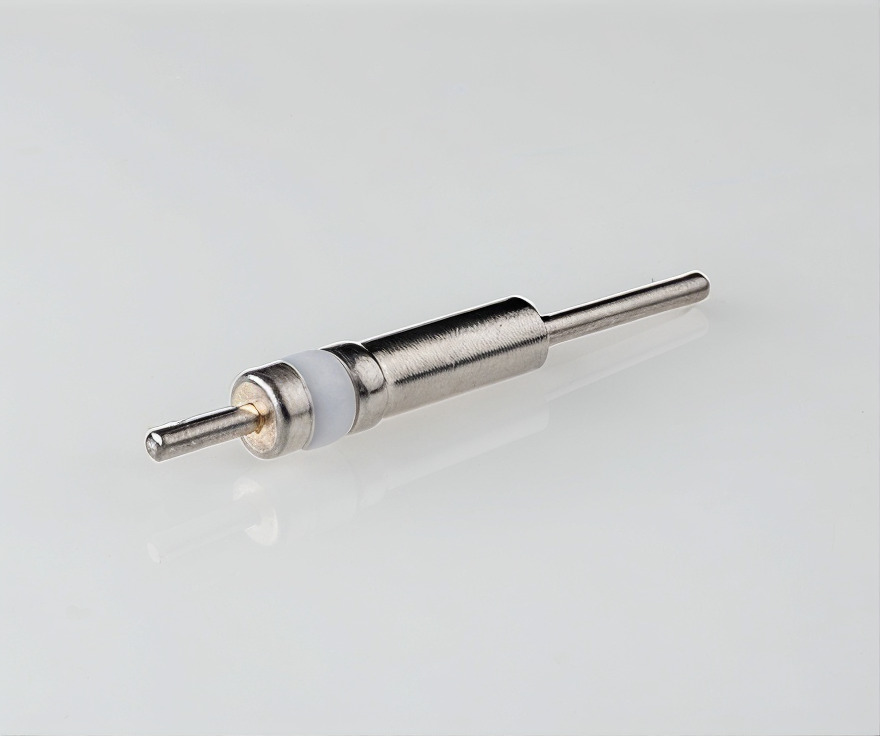

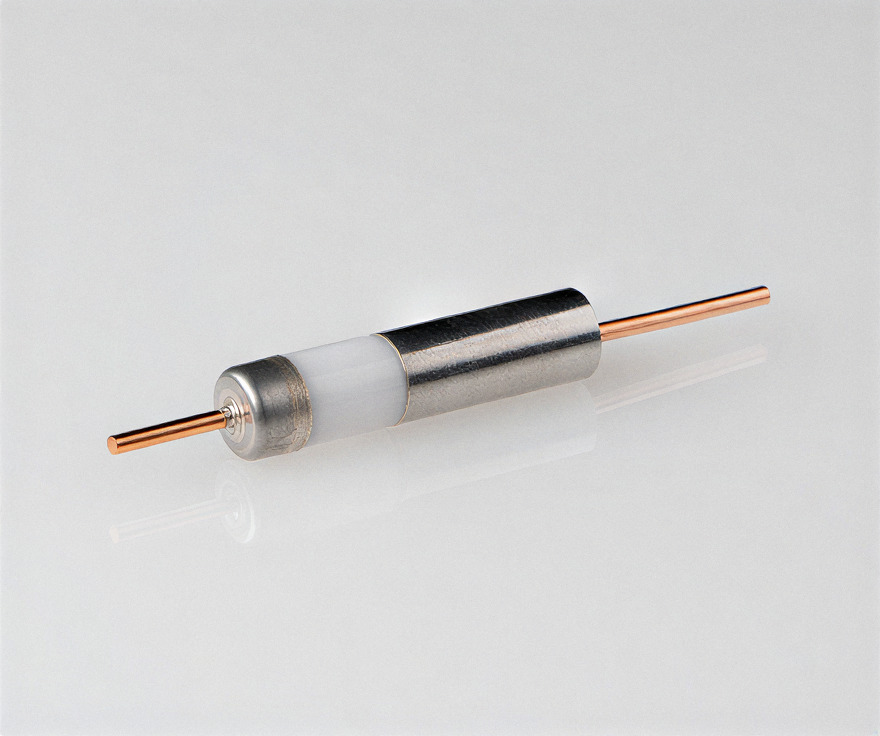

Single feedthrough type B

Solid-core conductor, for 2 to 8 kV and 4 to 120 A. Available with a copper conductor for high currents, or with a Ni42 or NiFeCo conductor.

Request an offer

Article number	ØD	Voltage (DC)	Conductor	Current	ØF	G	K	L	L1	L2
551-0412-1	1.5 mm	4kV	Cu	15 A	7 mm	8 mm	15 mm	57 mm	10 mm	13 mm
551-1006	2 mm	4kV	Ni42	8 A	7 mm	8 mm	15 mm	52 mm	10 mm	13 mm
551-1006-1	2 mm	4kV	Cu	25 A	7 mm	8 mm	15 mm	52 mm	10 mm	13 mm
551-1007-1	3 mm	6kV	Cu	12 A	9 mm	13 mm	20 mm	58 mm	10 mm	13 mm
551-1008	4 mm	6kV	Ni42	20 A	10.8 mm	13 mm	20 mm	58 mm	10 mm	13 mm
551-1008-1	4 mm	6kV	Cu	60 A	10.8 mm	13 mm	20 mm	58 mm	10 mm	13 mm
551-1009	5 mm	6kV	Ni42	25 A	13.5 mm	13 mm	20 mm	65 mm	10 mm	13 mm
551-1009-1	5 mm	6kV	Cu	80 A	13.5 mm	13 mm	20 mm	65 mm	10 mm	13 mm
551-1010-1	8 mm	8kV	Cu	120 A	19.8 mm	16 mm	23 mm	68 mm	13 mm	13 mm
551-1063	1.5x0.25 mm	2kV	NiFeCo	4 A	5 mm	4 mm	10.5 mm	60 mm	10 mm	7 mm
551-1064	1.5 mm	2kV	NiFeCo	5 A	5 mm	4 mm	10.5 mm	60 mm	10 mm	7 mm
551-1066	1.5 mm	3kV	NiFeCo	5 A	5 mm	6 mm	12.5 mm	60 mm	10 mm	7 mm
551-1066-2	1.5 mm	3kV	Cu	15 A	5 mm	6 mm	12.5 mm	60 mm	10 mm	7 mm
551-1068	1.5 mm	5kV	NiFeCo	5 A	5 mm	10 mm	16.5 mm	60 mm	10 mm	7 mm
551-1068-2	1.5 mm	5kV	Cu	15 A	5 mm	10 mm	16.5 mm	60 mm	10 mm	7 mm

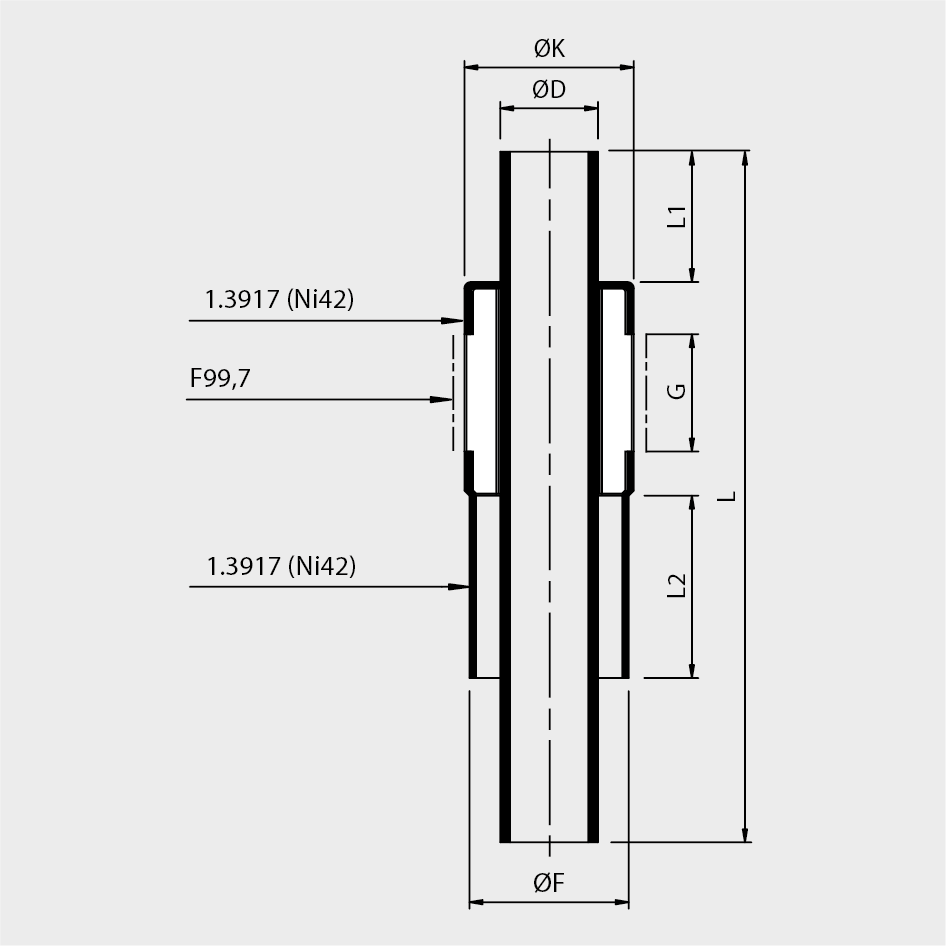

Single feedthrough type C

Compact bushing with Ni42 connection sleeves, for 1 to 4 kV and up to 30 A.

Request an offer

Article number	ØD	Voltage (DC)	Conductor	Current	ØF	G	ØK	L	L1	L2
551-1425	1.5 mm	1 kV	Ni42	5 A	4 mm	2.8 mm	4.5 mm	35 mm	6 mm	10 mm
551-1425-1	1.5 mm	1 kV	Cu	5 A	4 mm	2.8 mm	4.5 mm	35 mm	6 mm	10 mm
551-1491	1.5x0.25 mm	1 kV	Ni42	4 A	4 mm	2.8 mm	4.5 mm	35 mm	6 mm	10 mm
551-1633	7.5x0.75 mm	4 kV	Ni42	30 A	12 mm	8 mm	13 mm	53 mm	10 mm	14 mm

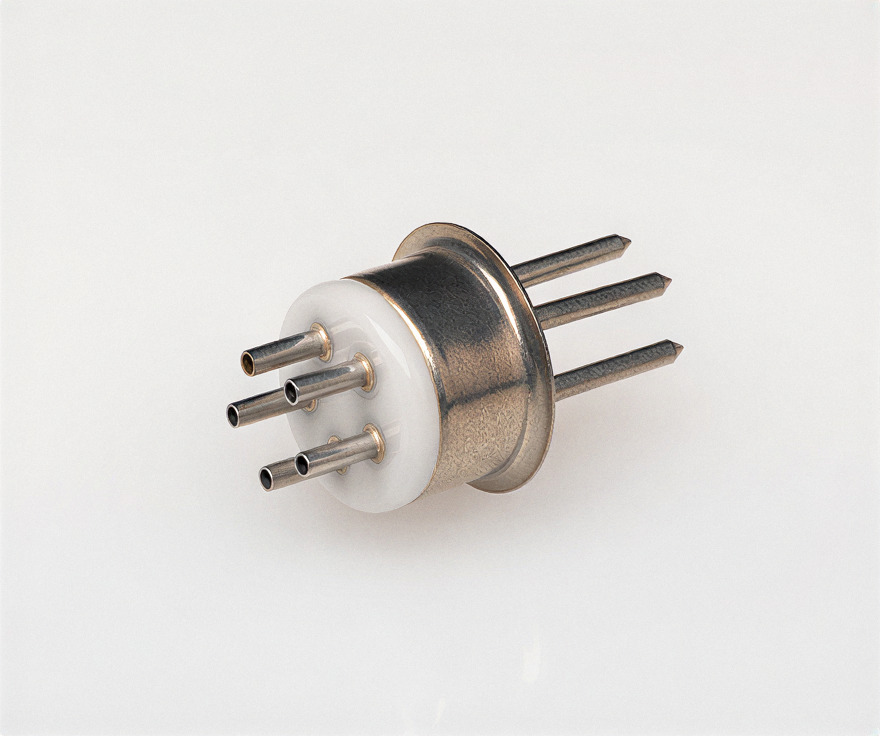

Multiple feedthrough type A

Five pins housed in a single ceramic body save space and reduce the number of sealing points. Designed for 500 V between the pins and 1 kV to the flange, at 4 A per pin.

Request an offer

Article number	ØA	Voltage (DC)	Current	ØD	No. of feedthroughs	ØG	ØJ	L	L1	L2
552-2548	7 mm	500V Pin-Pin, 1kV Pin-Flange kV	4 A	1.5x0.25 mm	5	13.2 mm	15.7 mm	27 mm	5 mm	9 mm

Multiple feedthrough type B

Same design as Type A, with two or four pins. Also rated for 500 V pin-to-pin, 1 kV pin-to-flange and 4 A per pin.

Request an offer

Article number	ØF	Voltage (DC)	Current	ØD	No. of feedthroughs	ØJ	G	L	L1	L2
552-0838	5 mm	500V Pin-Pin, 1kV Pin-Flange kV	4 A	1.5x0.25 mm	4	10.8 mm	5 mm	32 mm	10 mm	17 mm
552-0861	5 mm	500V Pin-Pin, 1kV Pin-Flange kV	4 A	1.5x0.25 mm	2	10.8 mm	5 mm	32 mm	10 mm	17 mm
